Product description

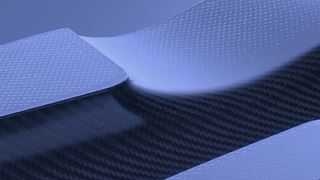

Toray AmberTool® HX42 is a low temperature curing epoxy composite tooling prepreg. After a suitable post cure, an end use temperature of 210°C (410°F) is achieved.
Toray AmberTool® HX42 is an exceptional and very well proven system that exhibits a high end-use temperature and extended outlife.
Product benefits/features
- Proven system for aerospace
- Low initial cure temperature
- High end use temperature of 210°C (410°F)
- Available in carbon reinforcements from 205gsm to 990gsm
- Excellent drape for complex shapes
Market segments
- Launch
- Space & Satellite
- Motorsport & Formula 1
- Automotive
- Aerostructures
- Radome
- Industrial
- eVTOL / Urban Air Mobility
Details
| Product category | Thermoset Prepreg Tooling |
| Processing | Post curable Autoclave |
| Resin type | Epoxy |
| Tg (Dry, onset) | 219 °C / 426 °F |
| Cure temperature (Optimal) | 60 °C / 140 °F |
| Cure temperature (Lowest) | 50 °C / 122 °F |
| Cure temperature (Highest) | 75 °C / 167 °F |
| Out life | 5 days |
| Post curable |
